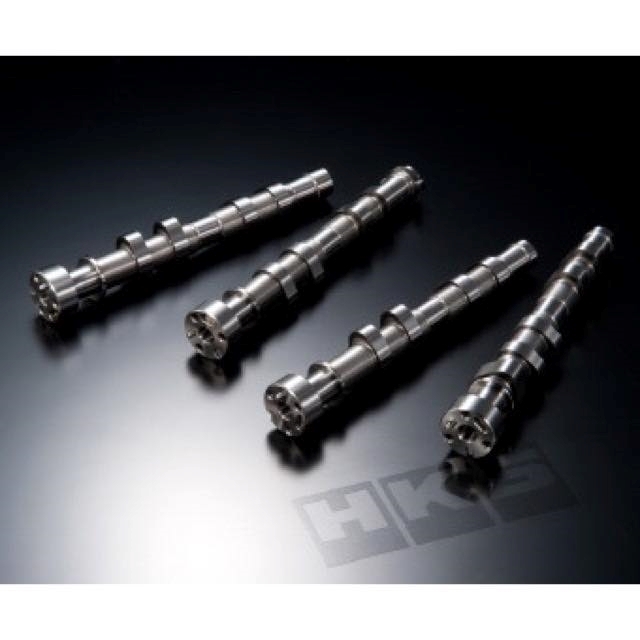

    HKS Camshaft FA20 Intake 260/Exhaust 266 SET

    SKU: HKS-22002-AT006
    Manufacturer: HKS
    $1,780.00
    price: $1,691.00
    i h

    *Fast Shipping *Buy Now and Pay Later

    *Authorized Dealer *Safe Purchases

    *Outstanding Customer Service A+++

    Camshaft Kit developed by taking advantage of knowledge and experience acquired through D1 drift and time attack at Tsukuba Circuit.
    Both NA and turbo-charged engine users can use this camshaft set.
    Overwhelming power increase can be felt in the high rpm range.
    Using the capacity upgrade kit together is recommended to achieve optimum performance and keep proper valve clearance.







    FEATURES
    • High acceleration and pick-up camshafts were completed by meticulous analysis of the stock rocker structure.
    • Cam lobe for the direct injection pump is available so the camshaft can be used the same way as the stock.
    • The valve timing is the knock pin is matched to stock cam, so, there is no need for complicated installation.
    • Since the stock valve piston clearance is narrow, this camshaft kit was developed to be used with the capacity upgrade kit, and the piston recess was redesigned to enable a 0.7mm lift increase without replacing the springs.





    SPECIFICATIONS
      STOCK HKS
    INTAKE EXHAUST INTAKE EXHAUST
    Cam Duration (  °) 255 252 260 266
    Valve Lift (mm) 11.00 11.00 11.70 11.70
    Clearance (mm) 0.13±0.03 0.24±0.03 0.13±0.03 0.24±0.03
    Valve Timing Most Advanced Angle (  °) 82 81 82 81
    Valve Timing Most Retarded Angle (  °) 150 135 150 135
    VVT Variable Angle ( °) 68 54 68 54
    Spring Replacement × ×
    Cam Type Roller Rocker Roller Rocker Roller Rocker Roller Rocker
    High Press. Pump Cam Lobe
    0.0 0
