    Mishimoto WRX Front-Mount Intercooler Kit

    SKU: MM-INT-WRX-15
    Manufacturer: Mishimoto
    $1,096.00
    i h

    *Fast Shipping *Buy Now and Pay Later

    *Authorized Dealer *Safe Purchases

    *Outstanding Customer Service A+++

    The Mishimoto Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25" in diameter to keep airflow velocities high, giving your car an instant response without excessive throttle lag that plagues many front-mount intercooler designs. The hot-side pipe also features a CNC-machined flange for a leak free connection to the turbo. The cold side of the system features 2.5" to 2.75” mandrel-bent aluminum tubing for maximum airflow, and to match the diameter of your throttle body.

    This 2015 WRX front-mount intercooler kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets, including a new bracket for the air intake. Their WRX front-mount intercooler kit also includes every coupler and clamp you need for a clean install, and compliments the Mishimoto Subaru WRX Performance Air Intake for added cooling power. Mishimoto tested this intercooler on their Stage 2 265whp WRX to find significant drops in AITs (air intake temperatures), and the intercooler has also been flow tested to over 600 whp!

    This 2015 WRX front-mount intercooler is available with either a Sleek Silver or Stealth Black cooler and, like all of their 2015 WRX parts, includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

    • Fits the 2015+ Subaru WRX
    • 3.5" Thick intercooler design optimized for maximum flow
    • Designed to work with Mishimoto Performance Air Intake and stock intake
    • No modification to front bumper and retains stock fog lights
    • Includes black powder coated steel, tubular crash bar
    • Smooth cast end tanks allow the best possible airflow in and out of the intercooler
    • Optimal core design for maximum cooling efficiency with minimal pressure drop
    • Rated to 600 whp
    • Includes all necessary couplers, brackets, and accessories
    • Intercooler available in Sleek Silver, Stealth Black, and Gold
    • Mishimoto Lifetime Warranty

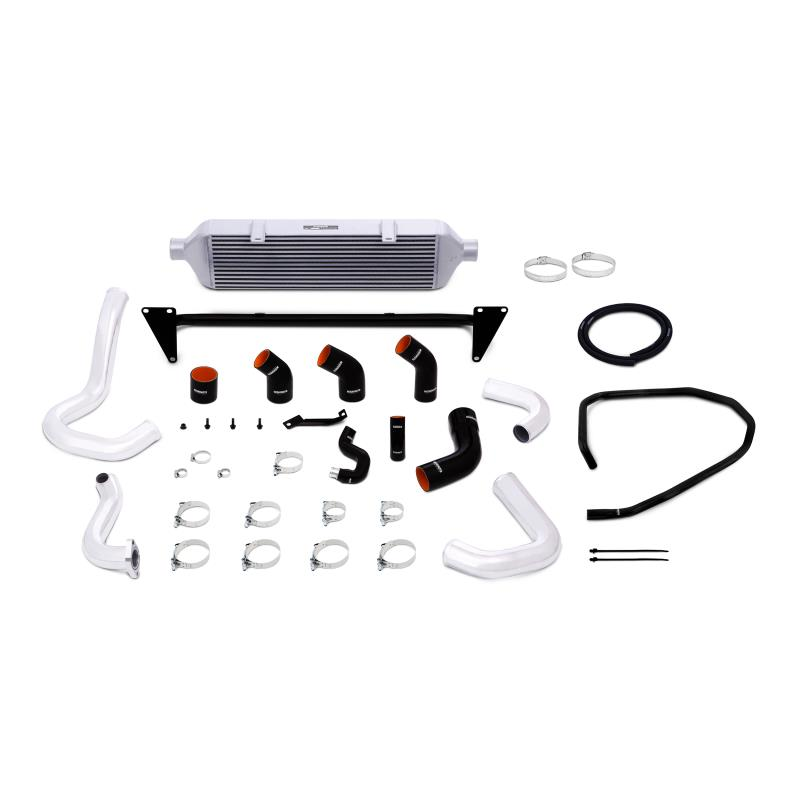

    PURCHASE INCLUDES

    (1) Bar-and-Plate Intercooler
    (1) Intercooler Mounting Bracket
    (1) Charge Pipe Assembly
    (1) Air Splitter with Attached Rubber Gaskets
    (1) Charge Pipe to Intercooler Hose
    (1) Intercooler to Throttle Body Hose
    (3) Bypass Valve Hoses
    (2) 3" T-bolt Clamps
    (2) 3.5" T-bolt Clamps
    (4) Worm-Gear Clamps
    Mounting Hardware
    Mishimoto Lifetime Warranty

    COOLER OVERALL SIZE

    37.7" x 8.6" x 5.4"

    COOLER CORE SIZE

    28" x 8.05" x 3.5"

    COOLER CONSTRUCTION

    Bar-and-plate with cast end tanks

    COOLER INLET / OUTLET

    2.45" I.D. / 2.75" O.D.

    HOT-SIDE INTERCOOLER PIPE SPECS
    • Made from Polished Mandrel-Bent Aluminum
    • 2.25" I.D.
    • Hot-Side has CNC-Machined Flange for a Leak Free Connection to Turbo
    • Includes Two Lower Intercooler Pipes
    COLD-SIDE INTERCOOLER PIPE SPECS
    • Made from Polished Mandrel-Bent Aluminum
    • 2.5" & 2.75" I.D. Pipes
    • Includes Upper and Lower Intercooler Pipes
    PURCHASE INCLUDES

    (1) Bar-and-Plate Intercooler
    (1) Steel Crash Bar w/Mounting Hardware
    (2) Hot-Side Intercooler Pipes
    (2) Cold-Side Intercooler Pipes
    (1) Air Intake Bracket
    (1) 2.25" 45° Coupler
    (1) 2.25" to 2.75" 45° Transition Coupler
    (1) 2.5" to 2.75" 55° Transition Coupler
    (1) 2.5" to 2.75" 65° Transition Coupler
    (1) 3.00" Straight Coupler
    (1) BPV Recirculation Hose
    (1) BPV Vacuum Hose
    (1) 30-45mm Worm Gear Clamp
    (2) 1.75" T-Bolt Clamps
    (3) 2.5" T-Bolt Clamps
    (2) 2.75" T-Bolt Clamps
    (5) 3" T-Bolt Clamps
    Mishimoto Lifetime Warranty

    CRASH BAR SPECS

    Steel Construction with Black Powder Coat
    Application-Specific Mounting Holes

    ENGINE CODES

    FA20DIT

    CHASSIS CODES

    VA

    INSTALLATION TORQUE SPECS

    27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

    22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

    NOTE

    Mishimoto recommends that this intercooler kit, not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle’s ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle. This kit is rated for approximately 600 whp during normal operating conditions. Maximum horsepower potential will be near 700 whp. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.
