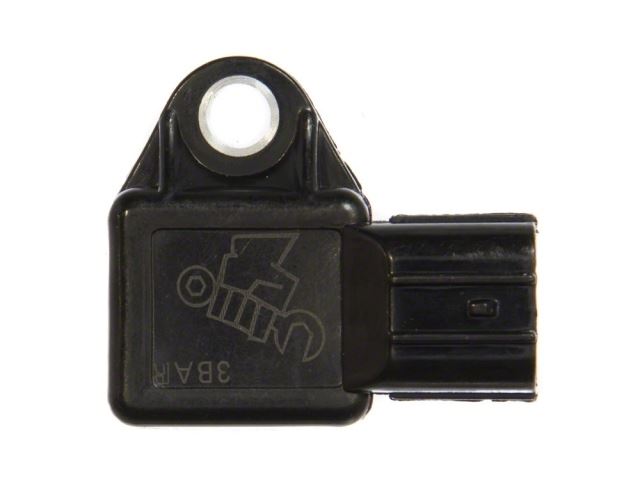

    Omni 3 Bar Map Sensor

    SKU: OMN-MAP-K-3BR
    Manufacturer: Omni Power

    MSRP: $129.99
    $113.99
    i h

    *Fast Shipping *Buy Now and Pay Later

    *Authorized Dealer *Safe Purchases

    *Outstanding Customer Service A+++

    The Omni 3 Bar MAP Sensor allows for tuning of your turbocharged or supercharged FR-S / BRZ



    When you decide to join the boost side. The stock map sensor can not read the boost levels that your ecu needs to appropriately adjust to run at its full potential. The Omni Map sensors is 100% plug and play. No need for additional harnesses or adapters. Installation takes 2 minutes to replace the stock map sensor. The accuracy of this sensor is 99% accurate. Sensor compensates for temperature readings from -40f to 260f thus never needing to retune at different altitudes.


    This MAP sensor WILL REQUIRE TUNING.



    Omni Power MAP Sensor 3 Bar FR-S BRZ

    Omni Power USA 3Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip.

    Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes. The unique ability to compensate for temperature changes allows the Omni Power USA 4 Bar MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale.

    With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors. Competitors sensors on the market don't have true linear scaling which can cause your engine to go out of tune with elevation changes, often resulting in idle problems, poor driveability, and catastrophic engine damage.

    Features:

    • Cases are designed to withstand in excess of 130 PSI without leaking
    • -40 to 260 degrees Fahrenheit temperature operating range
    • Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
    • Automatic temperature compensation.
    • True linear scaling for perfect drivability at all boost and vacuum levels.
    • Compatible with all aftermarket engine management systems.
    • Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
    • Allows smoother engine operation, higher boost levels, and better drivability than competitors turbo MAP sensors.
    • Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
    • Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping.
    5.0 1
    Write your own review Close
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    Michael | 6/10/2017 5:00 PM
    Plug and Play
    Takes literally 5 seconds to install and works exactly as advertised.
    Was this review helpful? Yes No (0/0)
    *
    *
    *

    The Omni 3 Bar MAP Sensor allows for tuning of your turbocharged or supercharged FR-S / BRZ



    When you decide to join the boost side. The stock map sensor can not read the boost levels that your ecu needs to appropriately adjust to run at its full potential. The Omni Map sensors is 100% plug and play. No need for additional harnesses or adapters. Installation takes 2 minutes to replace the stock map sensor. The accuracy of this sensor is 99% accurate. Sensor compensates for temperature readings from -40f to 260f thus never needing to retune at different altitudes.


    This MAP sensor WILL REQUIRE TUNING.



    Omni Power MAP Sensor 3 Bar FR-S BRZ

    Omni Power USA 3Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip.

    Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes. The unique ability to compensate for temperature changes allows the Omni Power USA 4 Bar MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale.

    With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors. Competitors sensors on the market don't have true linear scaling which can cause your engine to go out of tune with elevation changes, often resulting in idle problems, poor driveability, and catastrophic engine damage.

    Features:

    • Cases are designed to withstand in excess of 130 PSI without leaking
    • -40 to 260 degrees Fahrenheit temperature operating range
    • Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
    • Automatic temperature compensation.
    • True linear scaling for perfect drivability at all boost and vacuum levels.
    • Compatible with all aftermarket engine management systems.
    • Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
    • Allows smoother engine operation, higher boost levels, and better drivability than competitors turbo MAP sensors.
    • Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
    • Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping.
