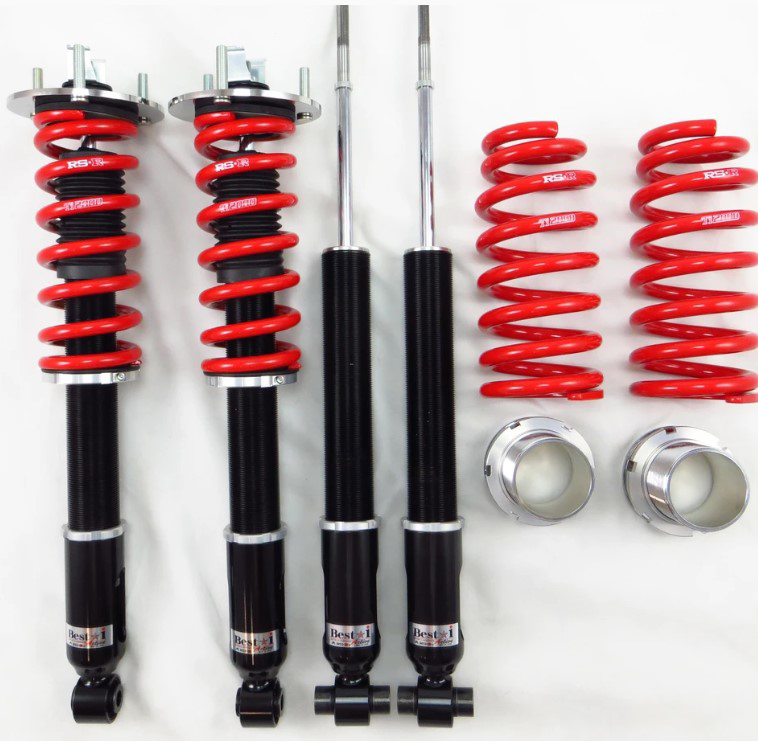

Part#: XBIT557M
Compatibility: 2016+ Scion/Corolla iM
Chassis code: ZRE186L

Preset Approximate Height From RS-R:
Front: -35mm to -40mm (-1.4inch to -1.6inch)
Rear: -35mm to -40mm (-1.4inch to -1.6inch)

Maximum Adjustment Ranges:
Front: -5mm to -80mm (-0.2inch to -3.1inch)
Rear: -20mm to -60mm (-0.8inch to -2.4inch)

Recommended Adjustments for Optimal Ride-ability:
Front: -15mm to -55mm (-0.6inch to -2.2inch)
Rear: -20mm to -60mm (-0.8inch to -2.4inch)

Spring Rates:
Front: 5.00kg/mm
Rear: 3.70kg/mm
