    SPL GR86/BRZ Rear Endlinks - 2013-2020 BRZ/FR-S/86, 2022+ BRZ/GR86

    SKU: SPL RE FRS
    Manufacturer: SPL

    SPL GR86/BRZ Rear Endlinks - 2013-2020 BRZ/FR-S/86, 2022+ BRZ/GR86

    SKU: SPL RE FRS
    Manufacturer: SPL
    Fits 2013 to 2020 Subaru BRZ, Scion FR-S, and Toyota 86, as well as 2022+ Subaru BRZ and Toyota GR86

    $229.00
    $204.00
    Registered customers will earn  102 reward points for this purchase
    i h

    *Fast Shipping *Buy Now and Pay Later

    *Authorized Dealer *Safe Purchases

    *Outstanding Customer Service A+++

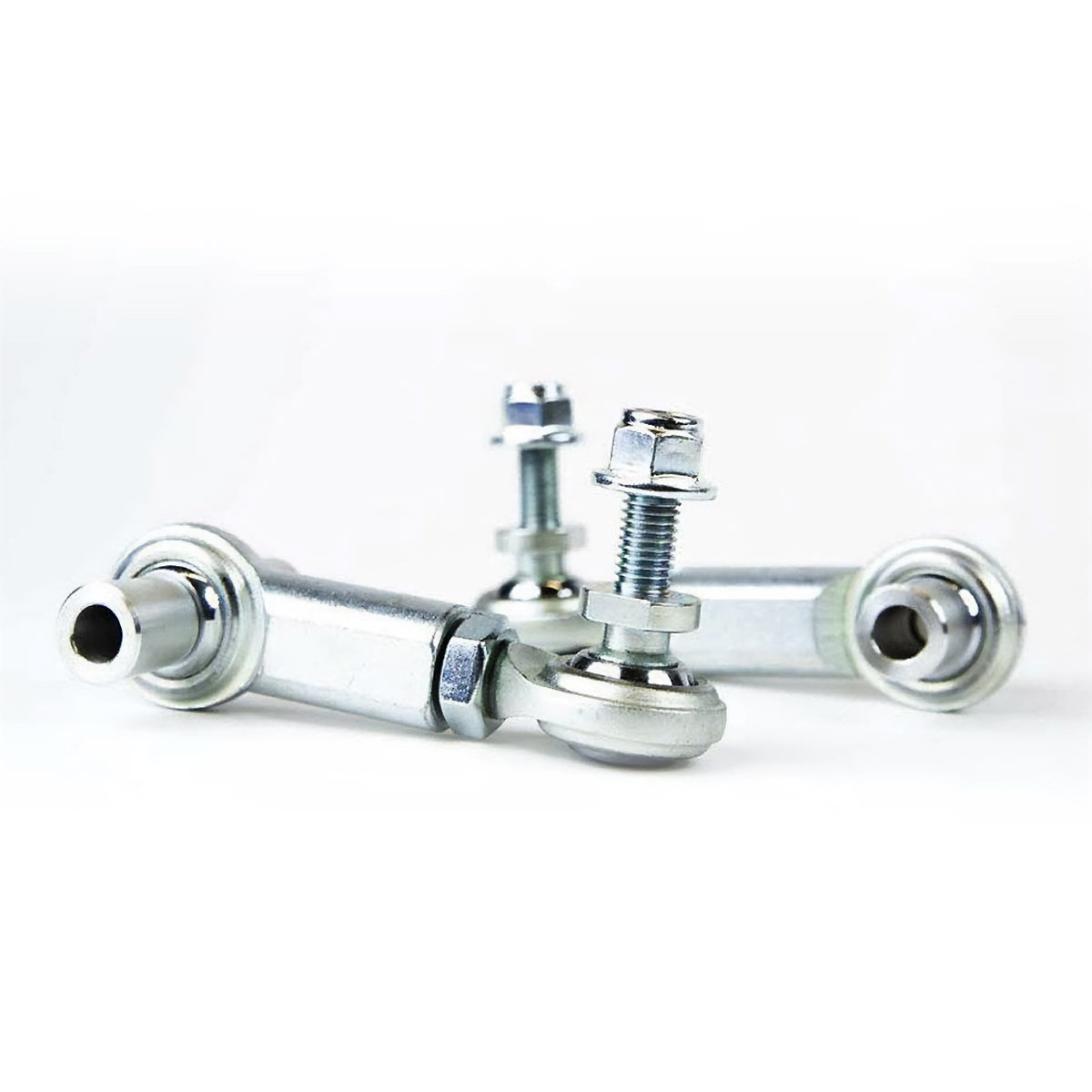

    SPL rear adjustable swaybar endlinks for the Toyota GR86 / GT86, Subaru BRZ / WRX / STI, and Scion FR-S feature massive PTFE-lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars. Many cheaper offerings reduce the bearing size in order to reduce costs and make it easier to produce a short endlink. This cuts the static radial load limit in half, meaning also the pressure on the spherical is much higher, leading to considerably shorter lifespans.

    Another reason for the larger bearing size is they offer a 22% wider range of articulation, which is vital with such a short overall length. On the sway bar side, custom heat-treated chromoly high-misalignment studs allow for extreme articulation angles (up to 65°) to prevent endlink bind when used with adjustable sway bars.

    Unlike OEM, SPL endlinks are adjustable, enabling you to eliminate unwanted preload on the sway bars, set the ideal bar angle, and properly corner balance your car. They also replace the OEM rubber mounting with solid aluminum, giving a small increase in rear sway bar rate and quickening it's response. The result is better handling, more sway bar tuning options, and less variation in performance between right-hand and left-hand turns.

    Benefits

    • Useful Adjustability Range
    • Eliminates Swaybar Preload
    • Correct Swaybar Install Angle
    • High Strength Construction
    • Self-Cleaning, US Made, PTFE-Lined FK Bearings

    Materials

    • 6061-T6 Aluminum Spacers
    • FK PTFE-lined 65° Studded Rod End (F1 Spec, Self-Cleaning)
    • FK PTFE-lined 65° Bearing (F1 Spec, Self-Cleaning)

    FITS:

    2022+ Subaru BRZ, Toyota GR86

    2013-2020 Subaru BRZ, Scion FR-S, Toyota 86
