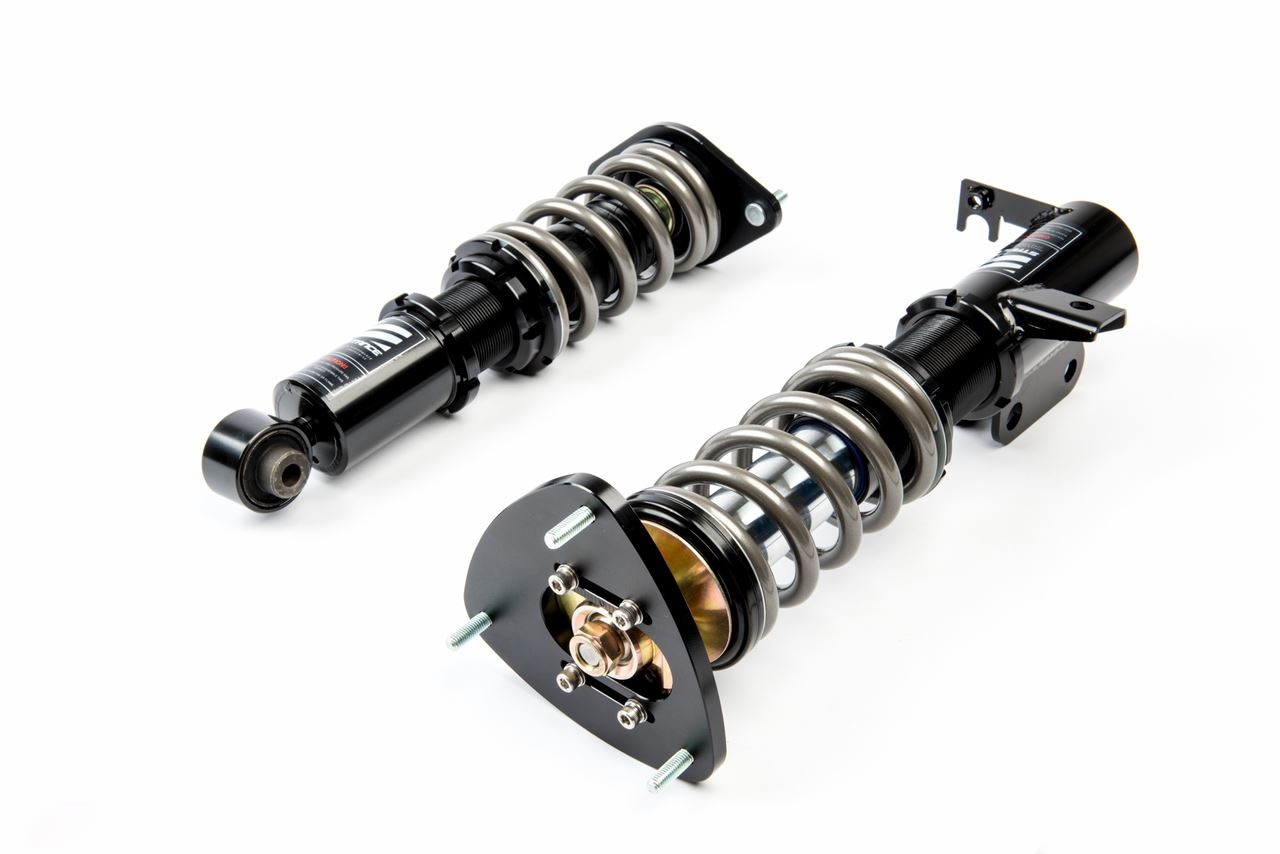

Stance GR86 XR1 Coilover - 2022+ BRZ/GR86. Speed Industry

"XR1 is our main flagship line of coilovers. Featuring an industry leading oversized casing with inverted monotube technology standard, XR1 dampers have a higher oil capacity and larger piston diameter resulting in access to a wide range of adjustment for ultimate response without compromise. Drivers of all levels can easily adjust the damping for a sport-tuned yet comfortable ride on the street and are able to quickly dial in a more aggressive setting for characteristics needed at the track.

Utilizing the very same technology found in top tier racing, Stance Suspension development of the XR1 coilover answers the demand for a true high performance suspension able to conquer the challenging dynamics of the street. The days of sacrificing ride quality for performance are over!" - Stance

Spring Rate (Front): 7KG / 150mm
Spring Rate (Rear): 8KG / 150mm

Camber Plates (Front): Yes
Camber Plates (Rear): No
Inverted Dampers (Front): Yes
Inverted Dampers (Rear): No

XR1 uses Electrodeposition polymer coating engineered specifically for our coilovers. Damper cases go through zinc phosphate pre treatment before our special formulated coating to deliver the ultimate corrosion protection. New and improved coating has exceeded 1000+ hrs of salt spray test, making it our most durable coating!

Camber Plate
Available on vehicles with strut type suspension. Camber adjustment is incorporated into the top plate allowing up to 4 degrees of adjustment. The pillowball bearing allows for precise feel and bind free operation.

Adjustment
The Stance damping adjuster knob, or “Clicker”, is designed to offer an easy and convenient way to adjust the damping of your coilover. Our heavy-duty adjuster gives a very positive “click” for each of the 16 levels of adjustment, making it easy to keep track of your personalized settings.

Monotube Damper
STANCE monotube dampers offer larger oil capacity and a superior piston diameter compared to a twin-tube design. In our monotube dampers, the oil and charged nitrogen are separated by a free floating piston, which minimizes aeration and fade. These features allow for greater heat dissipation, fade resistance and consistent damping force.

FITS:

2022+ Subaru BRZ, Toyota GR86
