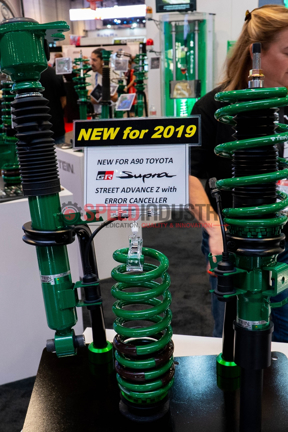

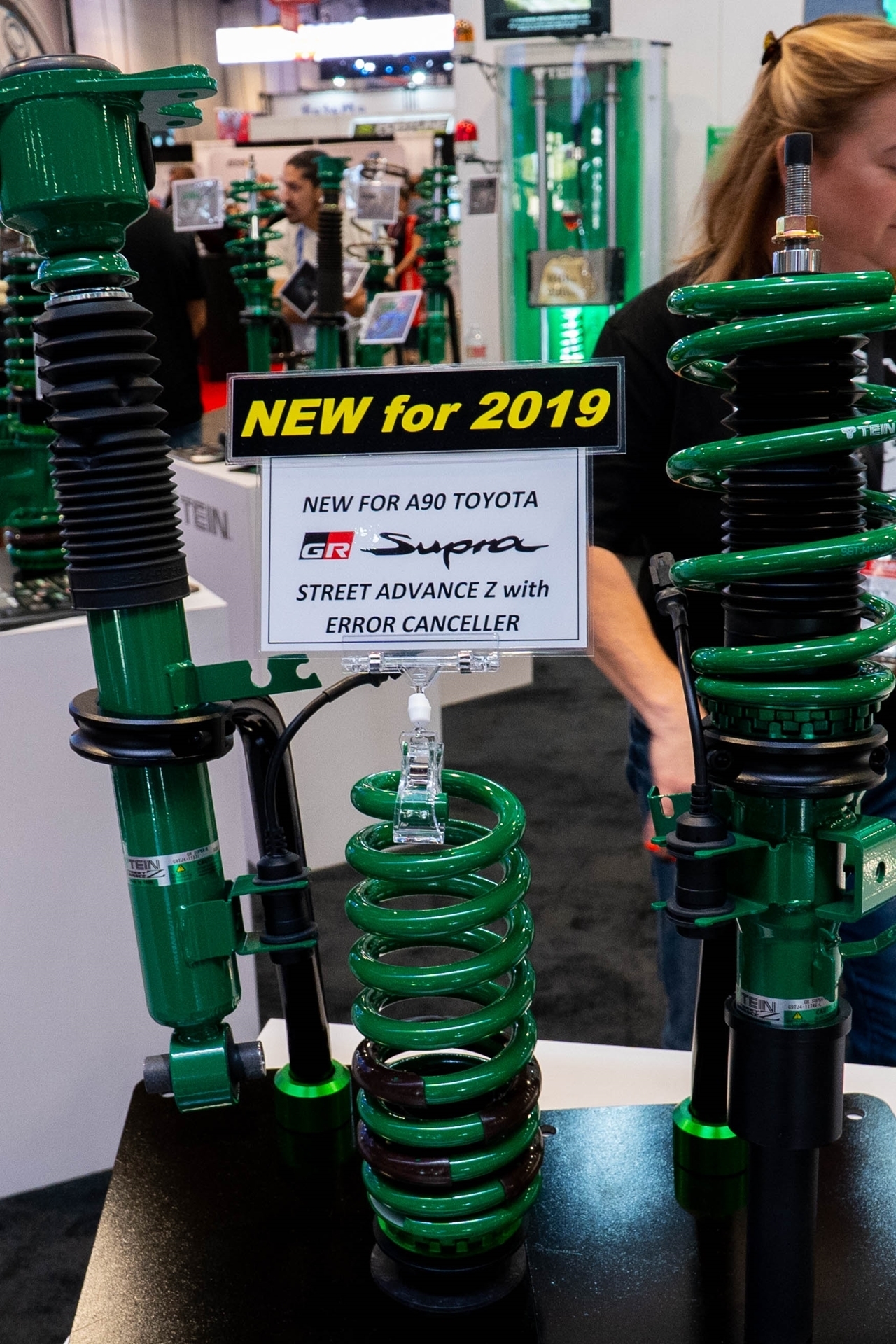

Tein Street Advance Z Coilovers w Error Canceller-A90 MKV Supra GR 2020+

Tein Street Advance Z Coilovers w Error Canceller-A90 MKV Supra GR 2020+

The TEIN Street Advance damper is the evolution of the popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height.

Vehicle ride height is adjustable via the ZT coated threaded sleeve. Updated internal components and external coatings increase durability and product life. Street Advance dampers are great for daily driving and spirited driving for all types of drivers. Made in Japan under strict quality control standards and developed by highly trained suspension engineers.

TEIN Street Advance Features:

• Steel Construction
• Twin Tube internal construction
• Larger piston diameter for strut type front and rear (22mm)
• 16-Way Damping Adjustable with over 200% increase in damping force change.
• Ride Height adjustable via spring seat
• Powder coated damper body
• Non-welded ZT coated Adjustment Tube
• Full-Length Dust Boots
• 1-piece Aluminum Spring Seat with Delrin Thrust Washer
• One Year Warranty Against Manufacturer's Defects
• EDFC-Compatible

Specifications :

• Spring Rate (lbs/in):
  • Front: 6 kgf/mm (336lbs/in)
  • Rear: 12 kgf/mm (672lbs/in)
• Max Ride Drop Height
  Front: -2.0"
  Rear: -2.4"
• Recommened Drop Height Range:

  • Front: -1.6 to -0.8
  • Rear: -1.6 to -0.8
• Ride Height Adjustable Range:
  • Front: -0.8 to -2.0
  • Rear: -0.3 to -2.4

Fitment:

• Toyota Supra A90 2020-2021
