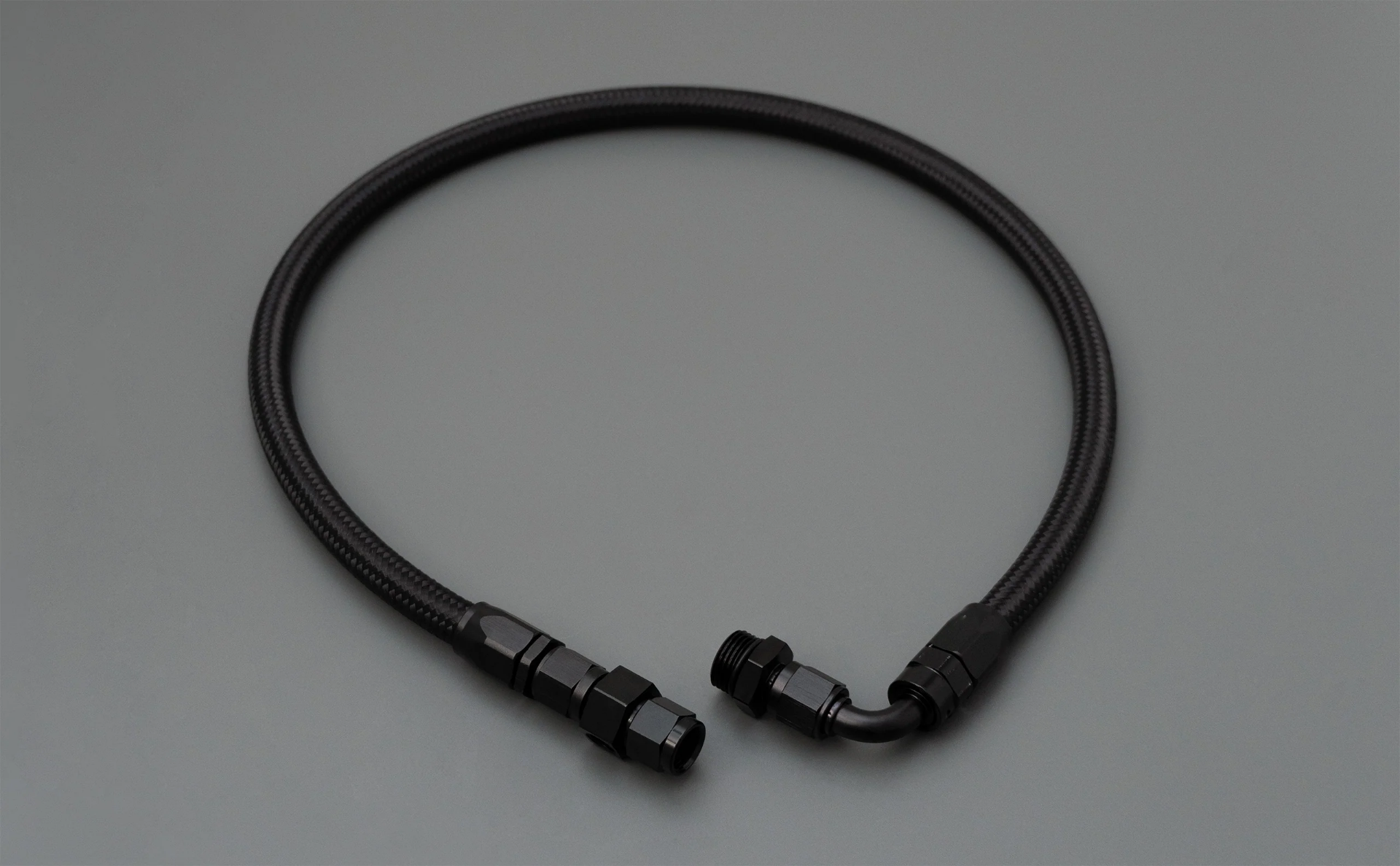

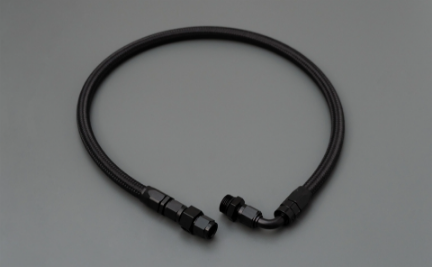

The TMS Port Injection Fuel Line is a plug-and-play hose assembly designed to connect the TMS Flex Fuel Kit to the front-mounted port injection fuel rail on the Toyota Supra™ A9X. Built with ethanol-safe materials and high-quality AN fittings, this line ensures a reliable and clean fuel connection.

Includes

• CPE stainless steel and nylon braided fuel hose (ethanol safe)
• (1) 6AN Coupler — Male to Female with 1/8" NPT port (for fuel pressure sensor)
• (1) 8AN to 6AN Adapter — Male flare to male straight with O-ring (fuel rail fitting)

Installation Notes

• Remove the cap on the T-fitting of the TMS Flex Fuel Kit
• Attach the fuel line and fuel pressure sensor to the 1/8" NPT port
• Torque all AN flare fittings to 19 ±2 Nm
