Rocket Bunny / Pandem V2 LED Light Kit
White LED Daytime running lights with amber turn signals
- Imported from TRA Kyoto, Rocket Bunny
For use with Rocket Bunny Version 2 Front Bumper
on FR-S/BRZ, RX-7, 350Z, GT-R, S15 & NSX

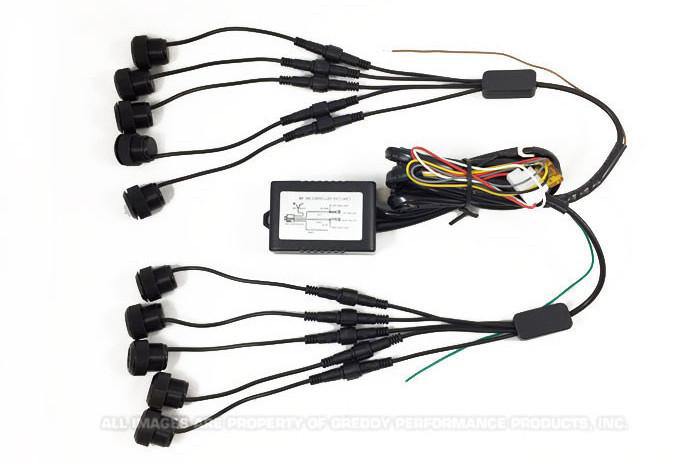

10 LED DRL Light Kit with controller
Basic Wiring Diagram Translation:
Black (-) Ground
Red (+) 12V Power
Yellow 12V ACC
White 12V Positive Headlight
Gray 12V to Flash Blinkers
Brown 12V Blinker Set A LED
Green 12V Blinker Set B LED
With ACC at ON position, the light will light up WHITE
Corresponding LED will flash AMBER with turn signal on
With parking or headlights on, the LED will turn AMBER
It will take roughly 20sec for the LED to turn off after the ACC is turned OFF
* Flash Feature: if you connect the Gray wire to positive terminal, the LED will flash WHITE and AMBER
Input Voltage: DC 9V-24V
Current Draw: 0.7A per unit
Waterproof rating: IP66
* Make sure to check that all the LEDs light up before installation
Detailed Wiring Instructions:
1.) Connect the main unit (control box) to the LED(s)
2.) Connect the Yellow wire to the Positive batter terminal and
the Black wire to the Negative. - LED will light-up WHITE
3.) Connect the White wire to Positive battery terminal.
- LED will light up AMBER
4.) Connect the Brown or Green wire to 12V source.
- Each corresponding LED will light up AMBER
5.) If you disconnect the Yellow wire from the 12V source
- LED will turn off after 20sec.
6.) If you connect the Gray wire to the 12V source while
the LED is on - the LED will Flash.
DISCLAIMER: This kit may replace the front OEM turn signal lights with aftermarket DRL LED type lights which can be wired to operate as driving lights and/or turn signals. However these lights are not DOT or E approved as this kit was originally developed for sales in Japan. It maybe unlawful to tamper, remove or replace DOT or E approved items with non-approved lights on street driven motor vehicles. These DRL / signal lights should only be installed and used for off-road, competition show purposes, not for public street or highway use. Please be sure to check with your local and federal laws before purchasing or installing.
